Silicone Potting Compounds
What is a Two-Component Potting Compound?
In the intricate world of electronics manufacturing, ensuring the longevity and reliability of devices often comes down to the materials used in their construction. One such material, critical for protecting sensitive components, is the two-component potting compound. This article will explore the nature of this versatile compound, its benefits, and why it's an essential part of modern electronics assembly.
Composition and State

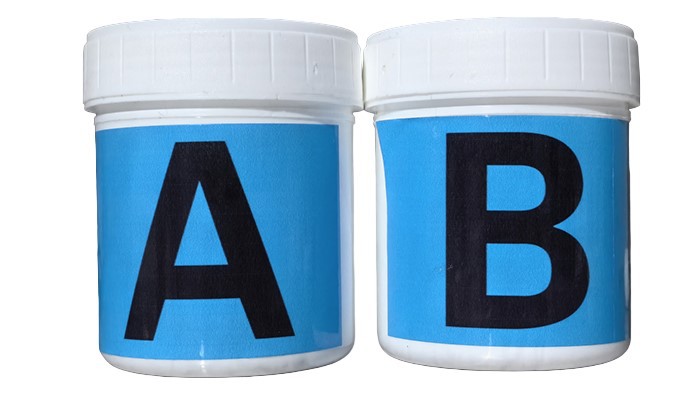

A two-component potting compound, commonly referred to as a dual-cure system, is composed of two parts labeled A and B. Part A typically contains the base polymer, while Part B includes the curing agent. Before curing, this compound exists in a liquid state, characterized by its flowability, which is essential for it to fill the spaces around electronic components effectively.
Viscosity and Application
The viscosity of the potting compound is a key attribute that varies based on the material's composition, the required performance characteristics, and the specific production processes. A lower viscosity allows for easier application and better infiltration into tight spaces, while a higher viscosity might be chosen for applications requiring a thicker layer of protection.
Curing Process
The potting compound only realizes its full value after complete curing. This process involves the chemical reaction between components A and B, which solidifies the compound and provides the protective properties necessary for electronic components.
The Journey from Liquid to Solid: Curing Process

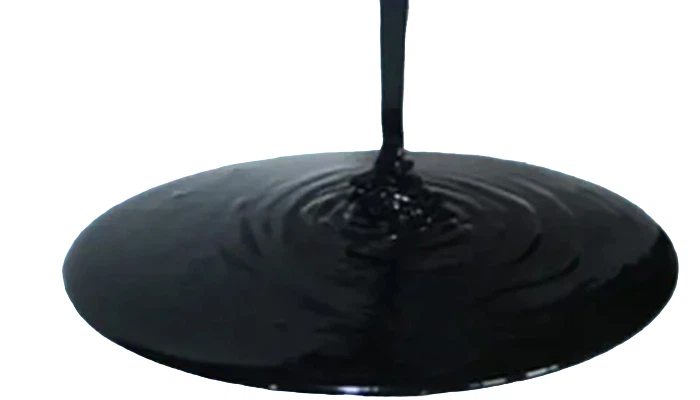

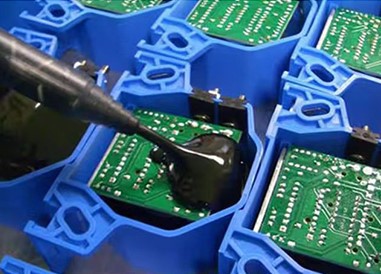

Potting compounds start their lifecycle as liquids, specifically designed to be poured or injected into the spaces surrounding sensitive electronic components. The curing process marks the transition from a fluid state to a solid, protective barrier. This transformation is vital as it is only upon complete curing that a potting compound realizes its full potential and value.
Post-Cure Protective Properties
Once cured, potting compounds serve a multitude of protective functions:
Waterproofing and Moisture Resistance: They provide a seal against water and moisture, safeguarding components from the damaging effects of humidity and liquid exposure.
Dust Protection: By creating a sealed environment, potting compounds prevent dust ingress that could lead to malfunctions or reduced component life.
Insulation: Acting as an electrical insulator, potting compounds prevent short circuits, ensuring the safe operation of electronic devices.
Thermal Management: Some potting compounds also facilitate heat dissipation, helping to manage the temperature of heat-sensitive components.
Corrosion Resistance: They shield components from corrosive substances, preserving the longevity of the device.
Temperature Tolerance: Potting compounds maintain their properties across a wide range of temperatures, offering consistent protection in varying thermal conditions.
Vibration Damping: The solidified compound can absorb vibrations, protecting sensitive components from mechanical stress.
Advantages of Potting Compounds
The advantages of using potting compounds are manifold:
Low Viscosity in Compound Form
This ensures ease of application and thorough infiltration into the component's crevices, providing comprehensive coverage.
01
Excellent Workability
The compounds are easy to handle and process, making them suitable for both manual and automated production environments.
02
Long Pot Life
The extended workability period allows for flexibility in manufacturing schedules and processes.
03
Good Penetration
Potting compounds are designed to seep into small gaps, ensuring no component is left unprotected.
04
Superior Cured Properties
The cured material exhibits a range of excellent properties, including mechanical strength, electrical insulation, and thermal stability.
05
Two-Component Potting Compound: Silicone vs. Polyurethane, Which is Better?
Similarities between the two
Two-component liquid foaming silicone and two-component polyurethane structural adhesive are two common polymer materials, each with unique properties and applications. Although both are termed "two-component," these materials exhibit significant differences in composition, performance, and usage.

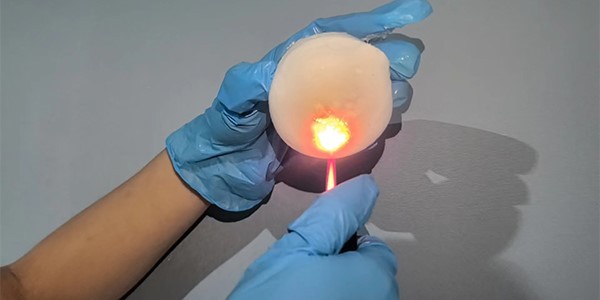

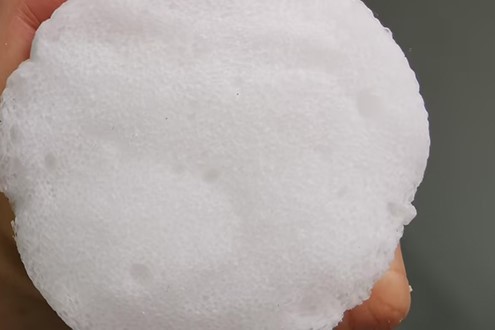

Two-component liquid foaming silicone

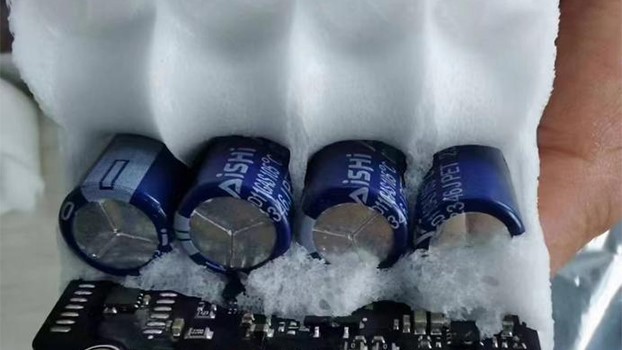

Two-component liquid foaming silicone, commonly referred to as foaming silicone, is a type of foaming sealant material formed by mixing and reacting two liquid components. When mixed in a specific ratio, it undergoes a chemical reaction that rapidly generates bubbles, creating a foam with numerous independent pores. This foam not only exhibits excellent elasticity and compressive resistance but also has strong adaptability to temperature changes.

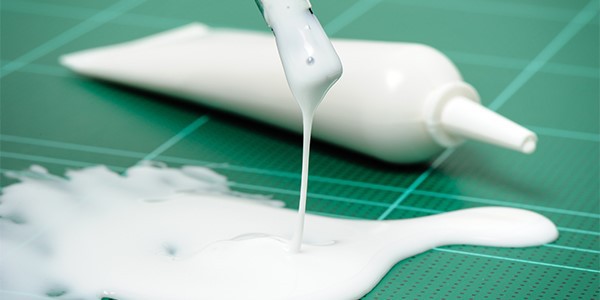

Two-component polyurethane
Two-component polyurethane structural adhesive is a reactive bonding material composed of polyisocyanate and polyol. Once these two components are mixed, they undergo a rapid chemical reaction to form a durable polyurethane network. This structure is characterized by high bonding strength and excellent resistance to water and oil.
Where Does It Apply?
Liquid Foaming
Silicone
Two-component liquid foaming silicone
Two-component liquid foaming silicone is typically used in fields such as new energy and energy storage batteries for shock absorption and flame retardancy, sealing and protection of electrical equipment, installation gaskets for automotive interior parts, and sealing in the photovoltaic industry. Due to its elasticity and compressibility, it can effectively absorb vibrations and accommodate displacement changes in joints. Additionally, foaming silicone is often used in thermal insulation layers of temperature control equipment to reduce energy loss.
Polyurethane
Two-component polyurethane
Two-component polyurethane structural adhesive, with its excellent resistance to various media and structural strength, is commonly used for bonding different materials such as metal, plastic, and glass. For instance, in vehicle manufacturing, it can serve as an adhesive for the car body structure; in the construction industry, it is used to secure large glass curtain walls; and in furniture making, it is an important material for connecting various components.
Electrical properties
From an electrical performance perspective, silicone potting compound has excellent insulation properties and can withstand high voltages without breakdown, making it ideal for protecting electronic components. Although polyurethane is slightly inferior in electrical insulation, its good mechanical properties still meet the requirements of most electronic encapsulations.
Chemical resistance

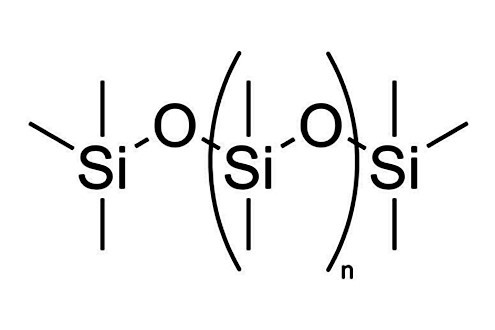

In terms of chemical resistance, silicone, due to its stable siloxane bond structure, has excellent resistance to most organic solvents, acids, and bases. On the other hand, polyurethane is more sensitive to certain chemical solvents and may swell or decompose, so it is important to consider the types of chemicals present in the environment when selecting its use.
Applications of Two-Component Potting Compounds
Two-Component Potting Compounds find diverse applications across various industries due to their ability to provide robust protection and insulation for electronic components. Here are ten common applications:
Electronics Manufacturing

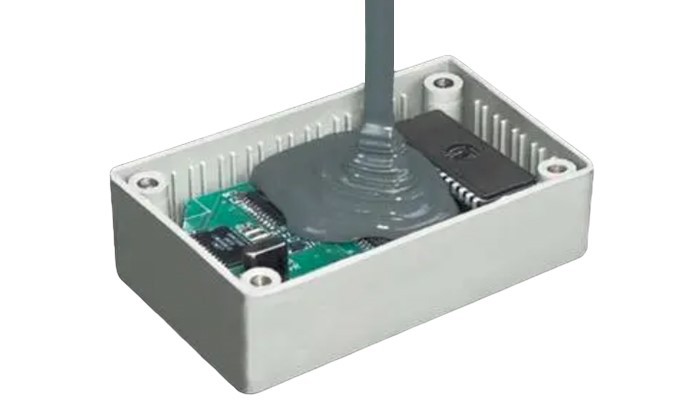

In electronics manufacturing, Two-Component Potting Compounds are extensively used for encapsulating sensitive electronic components such as circuit boards, sensors, and connectors. This protects them from environmental factors like moisture, dust, and vibration, ensuring optimal performance and longevity of the devices.
Automotive Electronics
Within the automotive industry, these compounds are utilized to seal and protect electronic control units (ECUs), sensors, and wiring harnesses from harsh conditions encountered in vehicle operation, including temperature fluctuations, humidity, and exposure to chemicals and fuels.
LED Lighting Systems

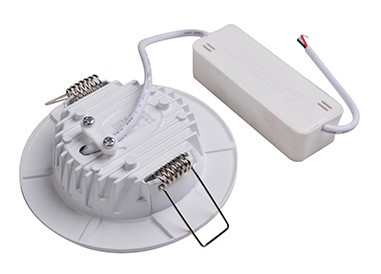

Two-Component Potting Compounds are employed in LED lighting systems to encapsulate LED drivers, modules, and arrays. This encapsulation enhances thermal management, improves durability, and provides protection against moisture and external mechanical stresses, thereby extending the lifespan of LED fixtures.
Renewable Energy Systems

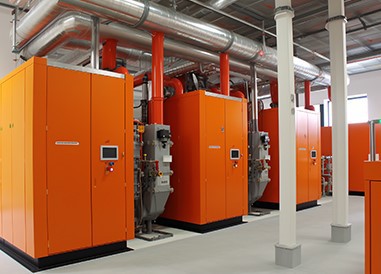

In renewable energy applications such as solar panels and wind turbines, these compounds are used to pot electrical components like inverters, charge controllers, and monitoring systems. This protects them from environmental elements such as moisture, UV radiation, and temperature extremes, ensuring reliable performance and longevity of renewable energy systems.
Aerospace and Aviation
Two-Component Potting Compounds play a crucial role in aerospace and aviation applications, where they are used to encapsulate electronic systems and components in aircraft, satellites, and unmanned aerial vehicles (UAVs). This provides protection against high-altitude conditions, extreme temperatures, and mechanical shocks encountered during flight.
Medical Electronics
In the medical device industry, these compounds are utilized to pot electronic components in devices such as patient monitors, defibrillators, and diagnostic equipment. The encapsulation provides electrical insulation, moisture protection, and resistance to sterilization processes, ensuring the safety and reliability of medical devices.
Industrial Automation
Two-Component Potting Compounds are employed in industrial automation systems to protect sensors, control units, and actuators from harsh industrial environments characterized by temperature fluctuations, humidity, and exposure to chemicals and contaminants. This ensures the continuous and reliable operation of industrial machinery and equipment.
Marine Electronics
Within the maritime industry, these compounds are used to pot electronic systems and components on ships, boats, and offshore platforms. They provide protection against saltwater corrosion, moisture ingress, and mechanical shocks experienced in marine environments, thus extending the lifespan of marine electronics and navigation systems.
Telecommunications Infrastructure

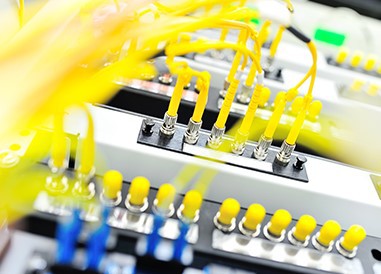

Two-Component Potting Compounds are applied in telecommunications infrastructure for encapsulating components in fiber optic networks, cell towers, and communication equipment. This protects them from moisture, temperature fluctuations, and mechanical vibrations, ensuring uninterrupted communication services.
Consumer Electronics
In consumer electronics products such as smartphones, tablets, and wearable devices, these compounds are used to seal and protect internal components like circuit boards, batteries, and connectors. This enhances the durability, reliability, and resistance to environmental factors, contributing to the longevity of consumer electronic devices.
Two-Component Potting Compounds Parameters
|
Liquid Data |
||||||||||||||
|
Item No. |
1 |
2 |
3 |
4 |
5 |
6 |
||||||||
|
Proportion of mixture |
1:1 |
|||||||||||||
|
Color |
Grey (Other color subject to MOQ) |
|||||||||||||
|
Viscosity(Mpa.S) |
5000 |
6000 |
5000 |
9000 |
10000 |
9000 |
||||||||
|
20-25℃ Working time(Mins) |
35-60 |
|||||||||||||
|
20-25℃ Cured time(Hrs) |
4 |
|||||||||||||
|
Thermofixation time(Min/℃) |
8/80 |
|||||||||||||
|
Cured Physics Data |
||||||||||||||
|
Compression set (22h, 100°C) |
≤5% |
|||||||||||||
|
Working temperature range |
-55~250℃ |
|||||||||||||
|
Shore-A |
60-65 |
|||||||||||||
|
Tensile strength (MPa) |
1.5 |
|||||||||||||
|
Elongation % |
50 |
|||||||||||||
|
Density(g/cm³) |
1.7 |
1.5 |
2.5 |
2.5 |
1.5 |
|||||||||
|
(W/M*K) |
0.8 |
3.0 |
2.0 |
1.5 |
||||||||||
|
Cured Electronic Data |
||||||||||||||
|
Ω.cm |
1.0*1014 |
|||||||||||||
|
KV/mm |
22 |
|||||||||||||
|
50Hz |
3.0 |
|||||||||||||
|
Dielectric constant(50Hz) |
0.005 |
|||||||||||||
|
Certificate |
Rosh , Reach |
|||||||||||||
|
Heat conduction |
Premium |
High |
||||||||||||
|
Flame-retardant |
UL94-V0 & HF-1 |
|||||||||||||
|
Application |
Design for the request |
|||||||||||||
Related Products

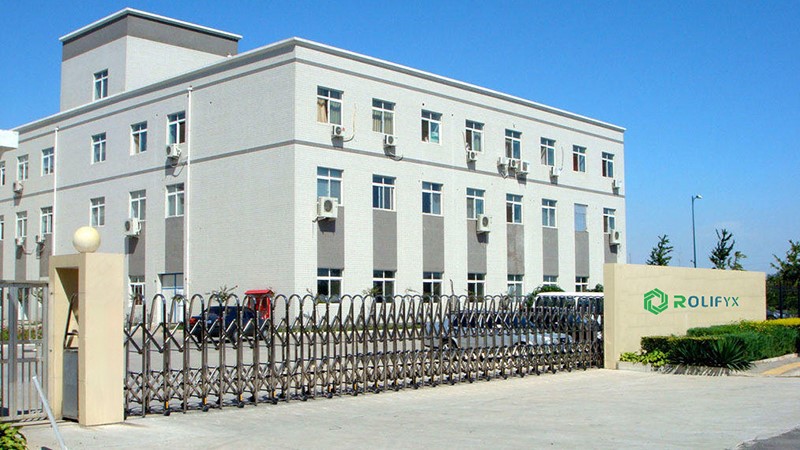

Rolifyx is a professional manufacturer and supplier specializing in Two-Component Potting Compounds, dedicated to providing comprehensive and customized services to global retailers. With our own manufacturing facility and a commitment to high-quality standards, we are positioned as a leader in the potting compound industry.
Our Commitment to Sustainability
At Rolifyx, we place a strong emphasis on environmental responsibility. Our Two-Component Potting Compounds are based on organic silicone, a material celebrated for its eco-friendly properties. Silicone is not only non-toxic and safe for use in various applications but also highly durable and versatile. Our focus on sustainability ensures that our products meet stringent environmental standards, providing safe and reliable solutions for a wide range of industries.

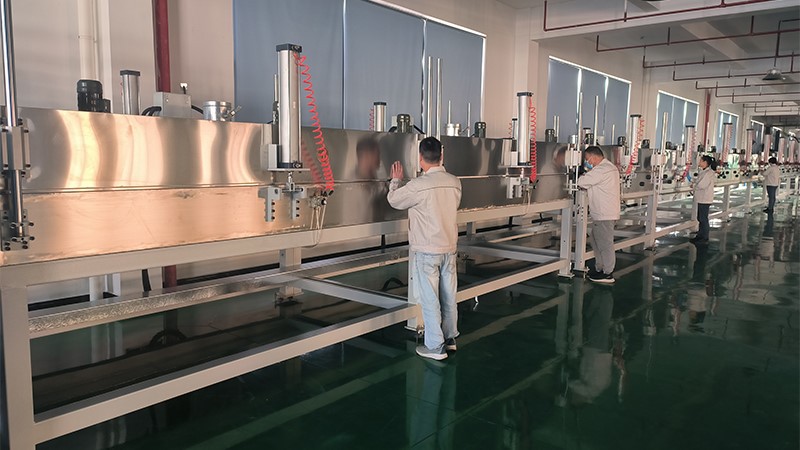

Locally Sourced Raw Materials
A cornerstone of our production process is the use of domestically sourced raw materials. By procuring our primary inputs from within the country, we can maintain a high level of quality control, ensure consistency, and support local economies. This approach not only guarantees the reliability of our products but also reduces our environmental footprint through minimized transportation needs and a closer relationship with our suppliers. This local sourcing enables us to swiftly adapt to changes in material availability and customer requirements, ensuring uninterrupted production and supply.

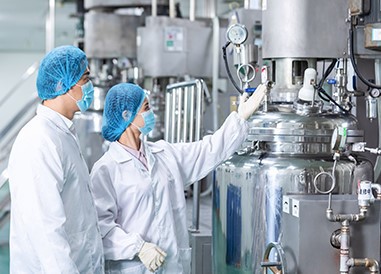

Technical Expertise
Our strong technical team is the backbone of Rolifyx’s success. Comprising highly skilled professionals with extensive experience in materials science and chemical engineering, our team is adept at both product development and customer support. We stay abreast of the latest industry trends and technological advancements to ensure our products remain cutting-edge. Our experts provide valuable insights and assistance, helping clients to optimize their processes and achieve superior outcomes.
One-Stop Service
Rolifyx offers a comprehensive one-stop service for global retailers. From initial consultation and product development to manufacturing, quality control, and logistics, we handle every aspect of the process. Our streamlined approach ensures efficiency and convenience for our clients, allowing them to focus on their core business activities while we manage their potting compound needs. Our dedicated customer service team is always available to provide support and address any queries, ensuring a smooth and satisfactory experience.
If you are interested in our two-component potting products or have any questions, please feel free to contact our professional team. We look forward to providing you with the best quality solutions and working together to make your project a success.
We will be happy to serve you, to provide you with high performance, reliable two-component potting solutions!
